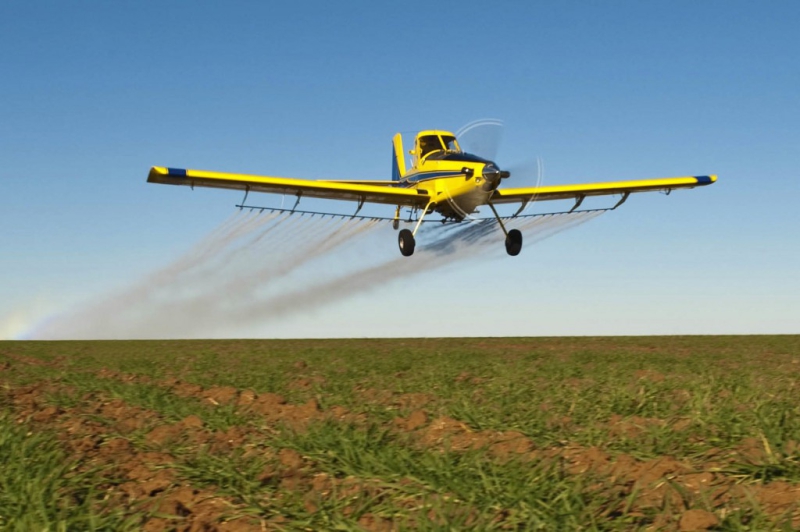

AT-504
Request a Quote
The AT-504 is an agricultural and training aircraft that constitutes an excellent platform for instruction.
Agricultural and Coach.
With older pilots retiring there is a growing need within the agricultural aviation sector to train and prepare their replacements. With his many years of flying experience, Leland Snow, pioneer and founder of Air Tractor, clearly understood the challenges associated with training new agricultural pilots and set out to overcome them. The solution: the AT-504.
Based on the proven AT-502B airframe and utilizing the same Pratt & Whitney PT6A-34AG turboprop engine, the AT-504 is a superior platform for aero-agricultural and instructional applications, without sacrificing performance or flight characteristics.
Side-by-Side seating offers a significant advantage over training in a Tandem seat, thus creating a more natural and efficient condition for communication and workload sharing between instructor and student.
The AT 504’s optimal power-to-weight ratio allows for short takeoff runs and impressive climb rates. Its 978.5 km (608 miles) range and 25.9 meter (85 – ft) wide swath make it a cost-effective business partner for operations of all sizes. The impressive working speed of the AT-504 is equal to that of the AT-502B. Its flying characteristics provide excellent preparation for new pilots converting to the AT-502 or other turboprop agricultural aircraft.
The AT-504 was designed to meet the demands of a challenging market where a Bi-Place trainer has to provide more than just performance: it must also generate profit.
Dimensions
Items | Attributes |
|---|---|
Wingspan | 1584 m |
Wing Area | 2901 m² |
Main Wheel Dimension | 29.00 x 11-10 |
Tail Wheel Dimension | 5.00 x 5 |
Specifications
Items | Attributes |
|---|---|
Engine | P&W PT6A-34AG 750 SHP @ 2200 RPM |
Propeller | Hartzell HC-B3TN-3D/T10282N+4 |
Cruising Speed at 2438m | 243 kph |
Aeroagricultural Application Speed | 120-145 kph |
Stall Speed with Flaps Retracted | 121 kph |
Stall Speed with Flaps Down
| 105 kph |
Stall Speed in Landing Configuration | 85 kph |
Rate of Rise
| 262 mpm |
Hooper Capacity | 1836 L |
Takeoff Weight | 4354 kg |
Landing weight | 3629 kg |
Empty Weight, with Spray Equipment | 2163 kg |
Payload | 2191 kg |
Takeoff Distance | 351 m |
Fuel Capacity | 818 L |
Range in Economic Cruise at 2438m | 978 km |
