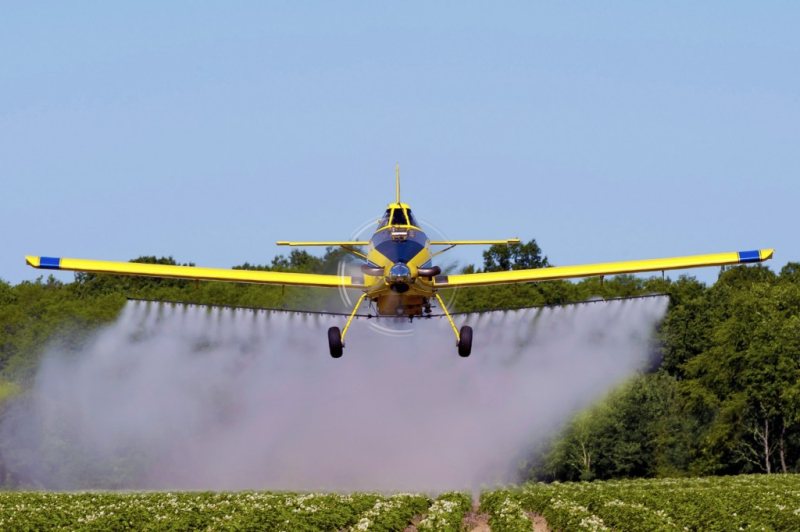

AT-602
The AT-602 is the perfect marriage between hopper capacity and engine performance.
Efficiency with High Productivity.
With wide bandwidth, reduced transfer time and large load capacity. It’s not hard to see why the AT-602 is one of aero farm operators’ favorite work tools. Its hopper capacity of 2,385 liters (630 gallons) and certified gross weight of 5,670 kg (12,500 lb.) make the AT-602 the logical choice when you need to increase productivity and profit.
Only one load is needed to apply it over a circle of 50.1 hectares with a flow rate of 47.3 liters per hectare.
With a Pratt & Whitney PT6A-60AG turboprop engine, extended 17-meter (56-foot) wingspan, wide-opening steel spring landing gear, reliable high-volume productivity is the focus of the AT-602. But in the pilot’s seat, you will find the AT-602’s controls surprisingly light, with a functional, spacious and comfortable layout.
It allows the change from a multi-plane operation to a high-productivity single-plane operation.
Request a Quote
Dimensions
Items | Attributes |
|---|---|
Wingspan | 1707 m |
Wing Area | 3124 m² |
Main Wheel Dimension | 29.00 x 11-10 |
Tail Wheel Dimension | 17.5 x 6.25-6 |
Specifications
Items | Attributes |
|---|---|
Engine | P&W PT6A-60AG 1050 SHP @ 1700 RPM |
Propeller | HC-B5MP-3C/M10876ANS |
Cruising Speed at 2438m | 293 kph |
Aeroagricultural Application Speed | 233 kph |
Stall Speed Flaps Retracted | 159 kph |
Stall Speed with Flaps Down
| 132 kph |
Stall Speed in Landing Configuration | 97 kph |
Rate of Rise
| 198 mpm |
Hooper Capacity | 2385 L |
Takeoff Weight
| 5670 kg |
Landing Weight | 5443 kg |
Empty Weight, with Spray Equipment | 2163 kg |
Payload | 2644 kg |
Takeoff Distance | 558 m |
Fuel Capacity | 817 L |
Range in Economy Cruise at 2438m | 966 km |
