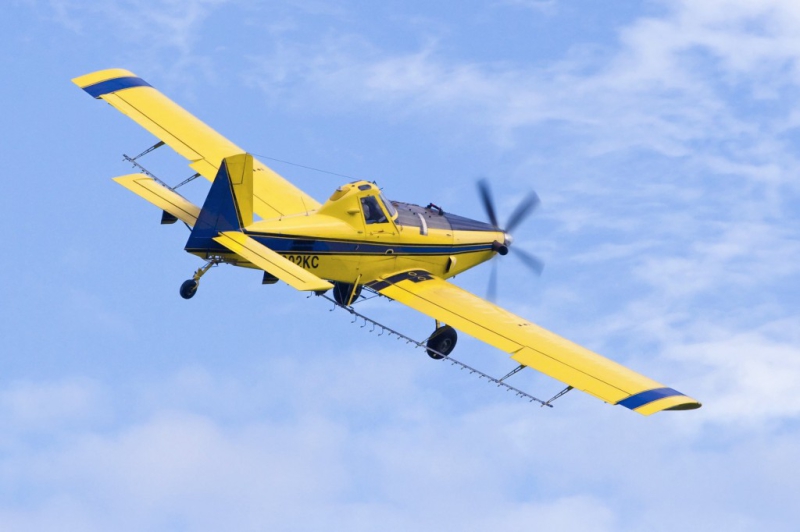

AT-802A
AT-802A is the largest and most productive single-engine aircraft in the world
Big Load Paid. Excellent productivity.
With a payload of 4,173 kg (9,200 lbs.) and 3,028 liters (800 gallons) hopper, the AT-802A has no competitors. No other single-engine agricultural plane on the market offers more work capacity. But, more work capacity means nothing without efficiency. With the combination of power, speed, payload, a large list of positive features and available options, the AT-802A presents new revenue opportunities for operators.
Major aerial application work is just the beginning for the AT-802. These versatile aircraft are carrying out missions around the world fertilizing and seeding forests, applying dispersants to oil spills and more. Transfer speeds of up to 190 m.p.h. help operators get to work areas faster, stay there longer and complete work on a single charge. This is unparalleled productivity for the agricultural aviation market.
Request a Quote
Dimensions
Items | Attributes |
|---|---|
Wingspan | 18,08 m |
Wing Area | 37,29 m² |
Main Wheel Dimension
| 32.0 in. |
Tail Wheel Dimension | 6.25 x 6 |
Specifications
Items | Attributes |
|---|---|
Engine | P&W PT6A-65AG 1050 SHP @ 1700 RPM |
Propeller | Hartzell HC-B5MP-3F/M11276NS |
Cruising Speed at 2438m
| 307 kph |
Aeroagricultural Application Speed | 209-257 kph |
Stall Speed Flaps Retracted | 172 kph |
Stall Speed with Flaps Down
| 146 kph |
Stall Speed in Landing Configuration | 101 kph |
Rate of Rise
| 237 mpm |
Hooper Capacity | 3028 L |
Takeoff Weight
| 7257 kg |
Landing Weight | 7257 kg |
Empty Weight, with Spray Equipment | 2951 kg |
Payload | 4307 kg |
Takeoff Distance | 610 m |
Fuel Capacity | 961 L |
Range in Economy Cruise at 2438m | 982 km |
